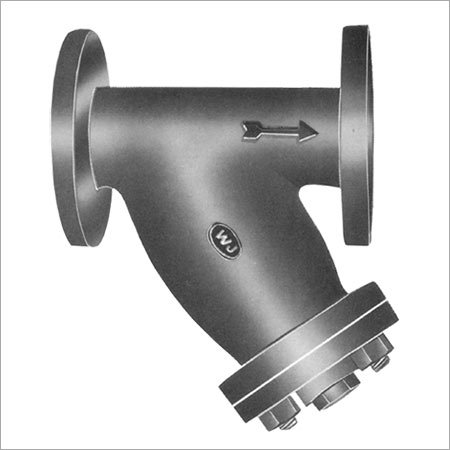

Y-Type Strainer

Y-Type Strainer
Y-Type Strainer
Send Inquiry
Product Code : 32
Product Description

Catering to diverse requirements of clients since years, we are renowned as the best manufacturer and exporter of an excellent range of Y - Type Strainer. This strainer is offered to clients in a wide range of dimensions and sizes to meet their diverse needs. This strainer is wisely made using best quality materials procured from reputed vendors of market. We stringently test this Y- Type Strainer on various standard quality parameters before the final dispatch in market.

Features:

  • Chemical and acid resistant
  • Sturdy design
  • Durable quality

DESCRIPTION

WJ' CAST IRON Y-TYPE STRAINERS are manufactured with 5.5. (AlSl-304) screen with Screwed Female Ends to BSP threads and Flanged Ends to 35-1 0 Table 'F'.
These strainers are suitable for 150 PSIG (10.54 Kg/Cm2) Max. Steam Pressure at 428°F (220°C) Temp. and are Tested at 300 PSIG(21.08 Kg/
Cm2) Hyd.

SALIENT FEATURES

  • Fine finish and smooth contours Reduce Pressure drop in the strainer.
  • Large screening area makes the strainer efficient.
  • Screen is guided in the body.
  • Strainer may be installed in the downward vertical lines with effectiveness equal to horizontal installation.
  • Drain plug is provided in larger sizes to drain off the foreign particles accumulated in the strainer.


TESTING AND CERTIFICATION


All strainers are Tested at Double the Max. Working Pressure. Each strainer is supplied with IBR Test Certificate in Form III-C issued by The Director of Boilers, Punjab.

Technical Specifications

Dimensions

Nominal Size

A

B

C

D

E

F

15 mm (1/2'')

76

68

136.5

90

12.7

95.3

20 mm (3/4'')

98

72

140

90

12.7

101.6

25 mm (1'')

133

90

162

115

12.7

120.7

32 mm (1 1/4'')

175

110

185

143

15.88

133.4

40 mm (1 1/2'')

178

130

206

150

15.88

139.7

50 mm (2'')

222

158

210

203

19.01

165.1

65 mm (2 1/2'')

----

----

248

240

19.01

184.2

80 mm (3'')

----

----

270

260

19.01

203.2

100 mm (4'')

----

----

381

285

22.2

228.6

125mm (5'')

----

-----

416

381

25.4

279.4

150mm (6'')

----

-----

451

394

25.4

304.8

200 mm (8'')

----

-----

522.5

550

38.1

368.5


Materials

Name of Part

Material

Specification

Body

Cast Iron

IBR 86 to 93 Gr. A

Strainer

S.S.

AISI-304

Gasket

C.A.F.

----

Cover

Cast Iron

IBR 86 to 93 Gr. A

Plug

Steel

----

Gasket

C.A.F.

----

Studs & Nuts

Steel

----
