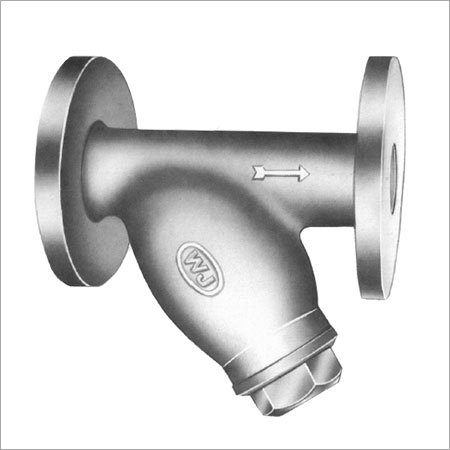

Y-Type Strainer

Y-Type Strainer
Y-Type Strainer
Send Inquiry
Product Code : 17
Price And Quantity
  • Minimum Order Quantity
  • 100 Piece
  • Price
  • 1075 INR/Piece
Product Specifications
  • Product Type
  • Strainer
  • Size
  • 2-20 Inch
  • Weight
  • 5-10 Kilograms (kg)
  • Type
  • Valve
  • Power
  • Manual
  • Pressure
  • High Pressure
  • Media
  • Gas
Product Description

Y-Type Strainer

DESCRIPTION

WJ' BRONZE Y-TYPE STRAINERS are manufactured with Brass/S.S. (AISI-304) screen with Screwed Female Ends to BSP Taper Threads and Flanged Ends to BS-10 Table H. These strainers are suitable for 250 PSIG (17.58 Kg/
Cm2) Max. Steam Pressure at 428°F (220°C) Temp. and Tested to 500 PSIG (35.15 Kg/Cm2) Hydrostatic Pressure.

SALIENT FEATURES

  • Fine finish and smooth contours reduce Pressure drop in the strainer.
  • Large screening area makes the strainer efficient.
  • Screen is guided in the body.
  • Strainer may be installed in the down ward vertical lines with effectiveness equal to horizontal installation.


TESTING AND CERTIFICATION


All strainers are Tested at Double the Maximum Working Pressure. Each strainer is supplied with IBR Test Certificate in Form III-C issued by The Director of Boilers, Punjab.

Technical Specifications

Dimensions

Nominal Size

A

B

C

D

E

F

15 mm (1/2'')

70

54

130

84

9.5

114.3

20 mm (3/4'')

98.5

64

133

90

9.5

114.3

25 mm (1'')

127

90

155

112

11.2

120.7

32 mm (1 1/4'')

156

110

184

112

11.2

133.4

40 mm (1 1/2'')

178

140

190.4

150

12.7

139.7

50 mm (2'')

222

160

219

170

12.7

165.1


Materials

Name of Part

Material

Specifications

Body

Bronze

IBR 282 (a) (IV) Gr. B

Strainer

S.S.

AISI-304

Gasket

C.A.F.

-----

Cover

Bronze

IBR 282 (a) (IV) Gr..


Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 400 Piece Per Day
  • Delivery Time
  • 1 Week
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
