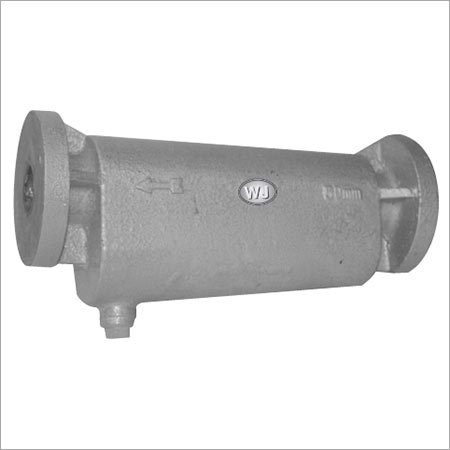

Moisture Separator

Moisture Separator
Moisture Separator
Send Inquiry
Product Code : CL-300
Product Description

Moisture Separator

DESCRIPTION

WJ' CAST STEEL MOISTURE SEPARATORS are manufactured, with Flanged Ends as per 35-10 Table J'. These are suitable for Maximum Working Pressure of(24.6 Kg/Cm2) on steam lines. Max. Temp.-425°C.

SALIENT FEATURES

Moisture Separators are provided with internal Ribs which help to remove the condensate from the steam lines.

TERMS & CONDITIONS

All the Moisture Separators are Tested at Double the Max. Working Pressure. Each Moisture Separator is supplied with IBR Test Certificate in Form Ill-C, issued by The Director of Boilers, Punjab.

Technical Specifications

DIMENSIONS (TABLE-'J')

NOMINAL SIZE

A + 2.0

ØB

ØD

T

ØC x TPI

25 mm

300

25

120.7

19.1

Ø40 x 14 TPI

40 mm

370

40

139.7

22.2

Ø40 x 14 TPI

50 mm

466

50

165.1

25.4

Ø40 x 14 TPI

65 mm

485

63

184.2

25.4

Ø63 x 12 TPI

80 mm

485

76

203.2

31.8

Ø63 x 12 TPI

100 mm

696

100

228.6

34.9

Ø63 x 12 TPI

150 mm

706

150

304.8

38.1

Ø63 x 12 TPI


MATERIALS

NAME OF PART

MATERIAL

SPECIFICATION

Body

Cast Steel

IBR 73 to 80

Gasket

C.A.F.

IS 2712

Drain Plug

S.S.

AISI-410
