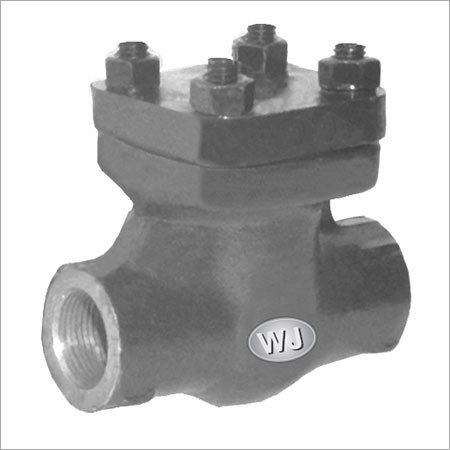

Lift Check Valve

Lift Check Valve
Lift Check Valve
Send Inquiry
Product Code : CL-800
Price And Quantity
  • Minimum Order Quantity
  • 100 Piece
  • Price
  • 1040 INR/Piece
Product Specifications
  • Weight
  • 5-10 Kilograms (kg)
  • Size
  • 2-20 Inch
  • Type
  • Valve
  • Power
  • Manual
  • Pressure
  • High Pressure
  • Media
  • Water
Product Description

Lift Check Valve

DESCRIPTION

WJ' FORGED STEEL HORIZONTAL LIFT CHECK VALVE CL-800 To APl-602, BSEN-15761. Bolted Bonnet, 13% Cr. S.S. (AlSl-410) Trim. Plug Type Disc. Screwed Female Ends to BSPT. Threads/ Socket Weld Ends.

Body Tested 207 Bar Gauge Hyd.
Seat Tested 152 Bar Gauge Hyd.
Max. Temp. 42 5°C (800°F).

These valves are manufactured in Full Bore as well as Reduced Bore.

SALIENT FEATURES:


Renewable 13% Cr. SS (AISI-410) Body Seat Ring and Disc have atleast 50 HB difference in hardness.

TESTING AND CERTIFICATION

Each Valve is Tested Hydrostatically at the Specified Pressure. These Valves are supplied with IBR Test Certificate in Form III-C issued by The Director of Boilers, Punjab.

Technical Specifications

DIMENSIONS

Nominal Size

FULL BORE

REDUCE BORE

A

B

C

A

B

C

10 mm (3/8'')

80

3/8'' BSPT

60

----

----

----

15 mm (1/2'')

86

1/2'' BSPT

60

80

1/2''BSPT

60

20 mm (3/4'')

100

3/4'' BSPT

73

86

3/4''BSPT

60

25 mm (1'')

125

1'' BSPT

85

100

1''BSPT

73

32 mm (1 1/4'')

145

1 1/4'' BSPT

100

125

1 1/4''BSPT

85

40 mm (1 1/2'')

165

1 1/2'' BSPT

120

145

1 1/2''BSPT

100


MATERIALS

NAME OF PART

MATERIAL

SPECIFICATION

Body

Forged Steel

ASTM A-105

Body Seat Ring

S.S.

AISI-410

Valve Disc

S.S.

AISI-410

Gasket

S.S. Type 304 Spiralwound Asbestos Filler

----

Bonnet

Forged Steel

ASTM A-105

Studs and Nuts

Alloy Steel / H.T. Steel

ASTM A-193 B7 / ASTM A-194 2H
