Gate Valve

Gate Valve

1050 INR/Piece

Product Details:

  • Size 2-20 Inch
  • Weight 5-10 Kilograms (kg)
  • Type Valve
  • Power Manual
  • Pressure High Pressure
  • Supply Ability : 400 Piece Per Day
  • Click to view more
X

Price And Quantity

  • 100 Piece
  • 1050 INR/Piece

Product Specifications

  • Manual
  • Valve
  • 2-20 Inch
  • 5-10 Kilograms (kg)
  • High Pressure

Trade Information

  • Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
  • 400 Piece Per Day
  • 1 Week
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

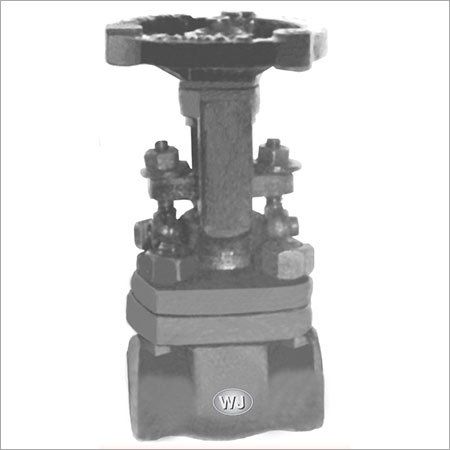

Catering to diverse needs of clients, we are engaged in manufacturing and supplying the best range of Gate Valve. This valve is extensively used for Naptha and Naptha derivatives in oil refineries. Specifically designed with a flanged end connection, this valve is in complete compliance with the industry standards. This Gate Valve is offered to clients is highly suitable for use in water, steam, air, gas and liquids having corrosive properties.

Features:

  • Rigid and sturdy design
  • Simple installation
  • Weather proof design

SMOOTH PERFORMANCE, TROUBLE FREE SERVICE

DESCRIPTION


WJ' FORGED STEEL GATE VALVE CL-1500 (ASTMA-105) To BSEN-15761, API-602. Bolted Bonnet, Yoke Type, Rising Stem, Outside Screw. 13% Cr. SS (AISI-41 0) Trim. Solid Wedge, Screwed Female Ends to BSPT Threads and Socket Weld Ends. Body Tested to 383 Bar Gauge Hyd. Seat and Back Seat. Tested to 281 Bar Gauge Hyd. and 6.9 Bar Gauge Air. Max. Temp. 425°C (800°F)

These Valves are manufactured in Full Bore.

SALIENT FEATURES

  • Renewable 13% Cr. SS (AISI-410) Body Seat Ring and wedge have atleast 50 HB difference in Hardness.
  • Bolted self aligning Two Piece Gland is provided.
  • Back Seat provision is provided to facilitate on line Replacement to gland packing under Pressure when valve is fully open.
  • Ample depth of stuffing box is provided.
  • Sturdy Hand wheel is provided for easy operation of Valve.


TESTING AND CERTIFICATION


Each Valve is Tested Hyd. at the specified Pressure. These Valves are supplied with IBR Test Certificate in Form III-C issued by The Director of Boilers, Punjab.

Technical Specifications

DIMENSIONS

Nominal Size

STANDARD

A + 1.5

C

~H

ØHW

15 mm (1/2'')

86

1/2'' BSPT

145

90

20 mm (3/4'')

90

3/4'' BSPT

152

90

25 mm (1'')

125

1'' BSPT

177

115

32 mm (1 1/4'')

140

1 1/4'' BSPT

227

115

40 mm (1 1/2'')

165

1 1/2'' BSPT

246

150


MATERIALS

NAME OF PART

MATERIAL

SPECIFICATION

Body

F.S.

ASTM A-105

Body Seat Ring

S.S.

AISI-410

Wedge

S.S.

AISI-410

Stem

S.S.

AISI-410

Gasket

S.S. Type 304 Spiral wound Asbestos Filled

----

Bonnet

F.S.

ASTM A-105

Packing

Graphited Asbestos

----

Studs & Nuts

Alloy Steel / H.T. Steel

ASTM A-193-87 / ASTM A-194 2 H

Screw with Washer

M.S.

----

Eye Bolts

S.S.

AISI-410

Nut for Eye Bolts

H.T. Steel

ASTM A-194-2H

Gland

S.S.

AISI-410

Gland Flange

F.S.

ASTM A-105

Yoke Sleeve

S.S.

AISI-410

Hand Wheel

M.I.

----

Check Nut

S.S.

AISI-410

Locking Screw

Steel

----



NETA VALVES PVT. LTD.
