Bucket Type Steam Trap

Bucket Type Steam Trap
Bucket Type Steam Trap
Send Inquiry
Product Code : 18
Product Description

Over the years, we have evolved as one of the topmost manufacturers and suppliers of an excellent range of Bucket Type Steam Trap. It is a mechanical trap, classified as a density operated steam trap which operates on the difference in density between steam and water. It consists of an Inverted Bucket attached through a lever mechanism to a valve. In market, this Bucket Type Steam Trap is available for clients at competitive price.

Features:

  • Ideal for small up to large condensate loads
  • Equipped with stainless steel wear and corrosion resistant components
  • Can easily bear high back pressure

HIGH PERFORMANCE UNDER DIFFERENT STEAM PRESSURES

DESCRIPTION

WJ' CAST IRON BUCKET TYPE STEAM TRAP VERTICAL/ HORIZONTAL with Brass/5.5. (AlSl-304) Bucket having Screwed Female Ends : suitable for Max. Working Pressure of 13 kg/cm2 (185 PSIG) and Temperature : 428°F (220°C). Body Tested to : 26 kg/cm2 (370 PSIG) HYD.

TESTING AND CERTIFICATION
All Traps are Tested Hydrostatically at Double the Max. Working Pressure. Each Trap is Tested on steam line to see the performance of Traps. Each Trap is supplied with IBR Test Certificate in Form Ill-C issued by The Director of Boilers, Punjab.

DISCHARGE CAPACITIES
Discharge capacities of Steam Traps under different Steam Pressures are given in Kg/hour of hot condensate at Temperature corresponding to the inlet Steam Pressure.

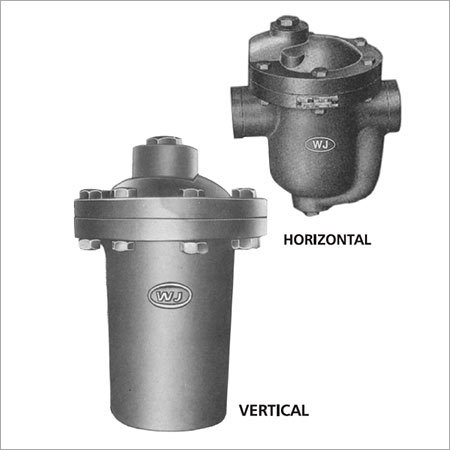

Note : These steam Traps are suitable for Vertical and Horizontal Installation.

Technical Specifications:

INLET STEAM PRESSURE

CAPACITY IN KILOGRAMS PER HOUR

Kg/Cm2

PSIG

1/2''

3/4''

1''

1 1/4''

1/2''

2''

0.70

10

400

850

1575

2600

4000

7800

1.76

25

425

850

1700

2700

4150

9000

3.52

50

380

850

1850

2850

4000

8200

5.27

75

425

1000

1725

2850

4150

8300

7.03

100

390

810

1625

2900

4700

8150

10.54

150

370

680

1575

2600

4300

8350

13

185

380

700

1650

2810

4500

8560

VERTICAL INSTALLATION

DIMENSIONS

Nominal Size

A

B (Approx.)

C

15 mm (1/2'')

1/2'' BSP

168

110

20 mm (3/4'')

3/4'' BSP

200

138

25 mm (1'')

1'' BSP

265

187

32 mm (1 1/4'')

1 1/4'' BSP

325

220

40 mm (1 1/2'')

1 1/2'' BSP

325

220

50 mm (2'')

2'' BSP

352

240

HORIZONTAL INSTALLATION

DIMENSIONS

Nominal Size

A

B

C

25 mm (1'')

180

147

115

40 mm (1 1/2'')

245

195

140

50 mm (2'')

290

260

196


MATERIALS

NAME OF PART

MATERIAL

SPECIFICATION

Cover

Cast Iron

IBR 86 to 93 Gr. A

Body

Cast Iron

IBR 86 to 93 Gr. A

Bucket Ring

Cast Iron

IBR 86 to 93 Gr. A

Nuts & Bolts

M.S.

----

Gasket Washer

Steam Jointing

----

Gasket

Steam Jointing

----

Plug

Bronze

IBR 282 (a) (IV) Gr. B

Bucket

S.S. Sheet

----

Valve Seat

S.S.

AISI-410

Valve Ball

S.S.

AISI-304

Hook Plate

S.S.

AISI-304

Lever

S.S.

AISI-304

Bucket Hook

S.S.

AISI-304
